KW-4C Spin Coater Incl. Oil-less vacuum pump, 3 vacuum chucks, & 2 year warranty


Note: Please specify the sizes of the 3 chucks before you check this out in Cart. List of all the chucks: Chucks of Spin Coater. If the chuck you want is not listed, please select "Customized Chuck" and add a note when checking out.



Substrate size 5-150mm
Speed range 50-10000RPM
Speed accuracy 1RPM
Speed stability ±0.1%
Acceleration range 1-10000RPM/S
Glue uniformity ±1%


Control signal:
Human machine interface 4.3 inch touch screen
Communication interface can be connected to the wireless mouse and keyboard: the machine can be placed in the glove box, and the customer can remotely operate the machine outside the glove box.
Stylus BAMBOO resistance pen (standard)
Vacuum pump AP-550V oil-free pump / FY oil pump


Programming mode:
Set data Unlimited group data, each group of 10 speeds (standard)
0-10000 seconds per period
Storage data unlimited data


Electrical parameters:
Mixing machine AC power supply port AC100-250V
Vacuum pump AC power supply port AC220V (standard) AC110V (optional)
Mixing machine power 200W
Vacuum pump power 350W
Vacuum pumping speed ≥60L/MIN


Mechanical Dimensions:
Mixing machine volume 210mm (W) X220mm (D) X160mm (H)
Conveyor weight 10KG
Pump weight 9KG


Use environment:
Ambient temperature 0-40°C
Relative humidity < 85%
Placed on the desktop, you can adjust the machine level with your own level


Technical support:
Warranty period 2 years

Free remote technical support (phone, email) for the life of the product

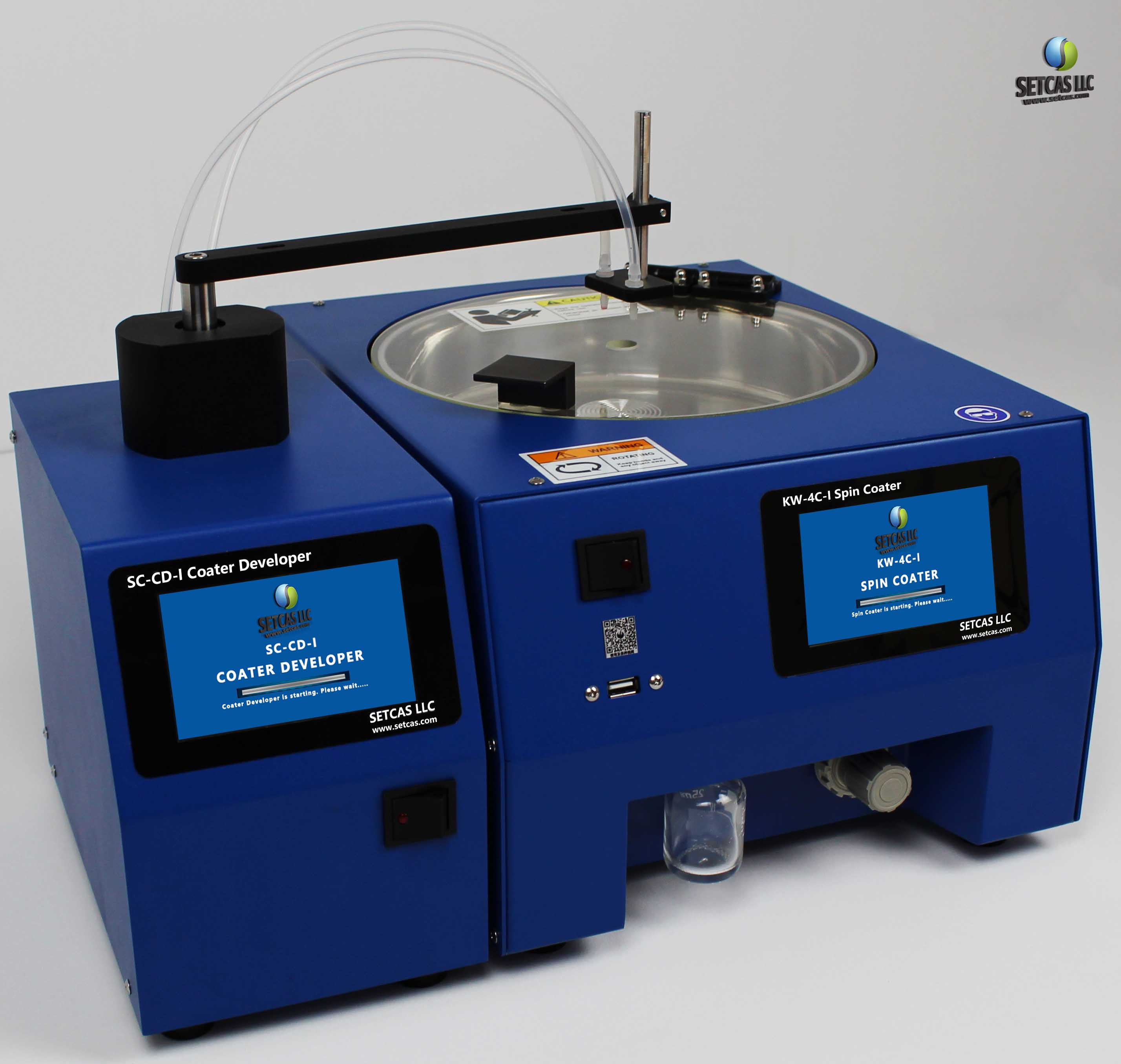

Spin Coater: KW-4C-I

$7,200.00 Regular Price
$6,700.00Sale Price
